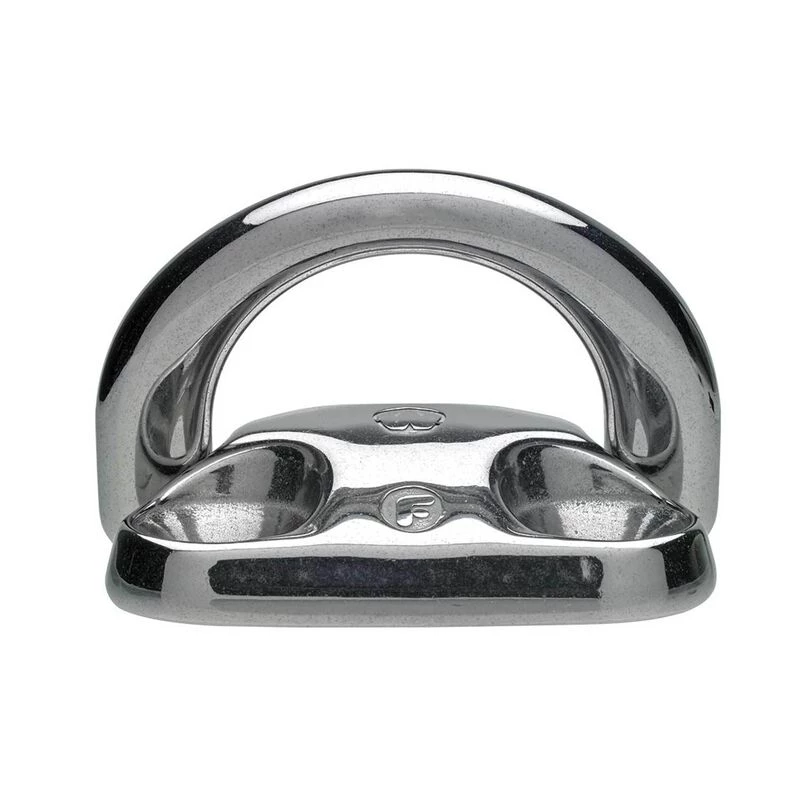

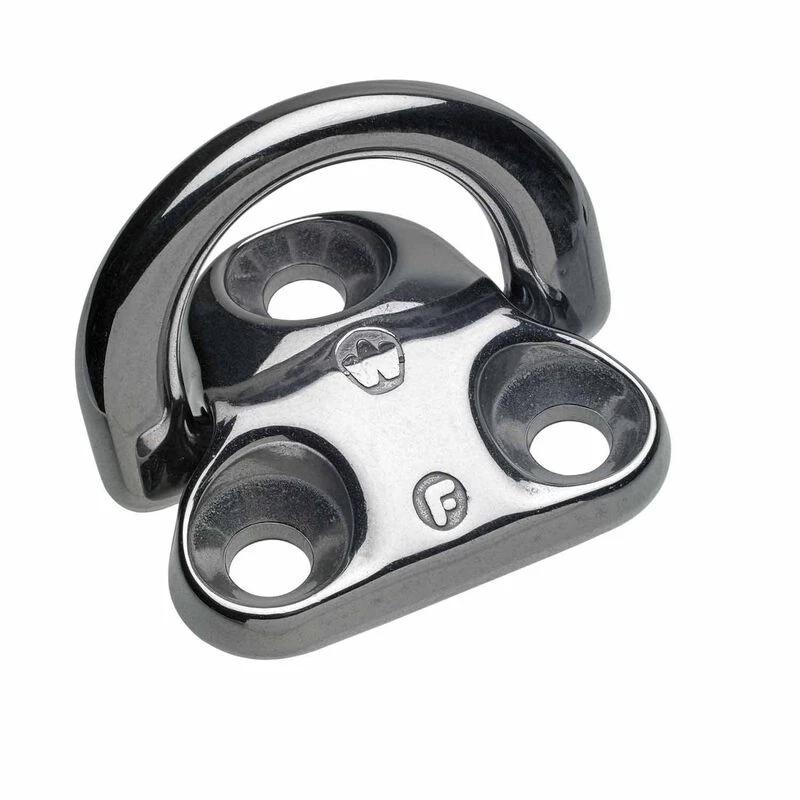

WICHARD Folding Padeyes

Beautiful, elegant yet super-strong, you can depend on Wichard’s Folding Padeyes.

Made from Grade 316L and HR 17.4PH stainless steel, with a modern and optimized design to suit aesthetics of today’s boats. Folding Padeyes are fully drop-forged, with outstanding working and breaking loads regardless the angle of the load.

They can be folded down to minimize the risk of injuries, and include silicone spacers to eliminate noise and unpleasant vibrations.

Folding Padeye Dimensions and Load Chart

	Small Folding Padeye	Medium Folding Padeye	Large Folding Padeye
Width of Base A	1 49/64″ (45mm)	2 1/4″ (57mm)	2 61/64″ (75mm)
Hole Center, Side B	1 1/16″ (27mm)	1 3/8″ (35mm)	1 49/64″ (45mm)
Opening Height C	19/32″ (15mm)	45/64″ (18mm)	63/64″ (25mm)
Overall Width of Ring D	1 47/64″ (44mm)	2 21/64″ (59mm)	3 5/32″ (80mm)
Length E	1 39/64″ (41mm)	2 1/64″ (51mm)	2 43/64″ (68mm)
Hole Center, Front/Back F	1 1/8″ (27mm)	1 3/8″ (35mm)	1 49/64″ (45mm)
Fastener Hole Diameter Ød	1/4″ (6mm)	5/16″ (8mm)	25/64″ (10mm)
Ring Diameter ØD	1/4″ (6mm)	5/16″ (8mm)	25/64″ (10mm)
Weight	0,123 Lb. (78g)	0,364 Lb. (165g)	0,783 Lb. (355g)
Working load	3170 Lb. (1140kg)	5290 Lb. (2400kg)	9000 Lb. (4080kg)
Breaking load	6610 Lb. (3000kg)	11000 Lb. (5000kg)	19840 Lb. (9000kg)
