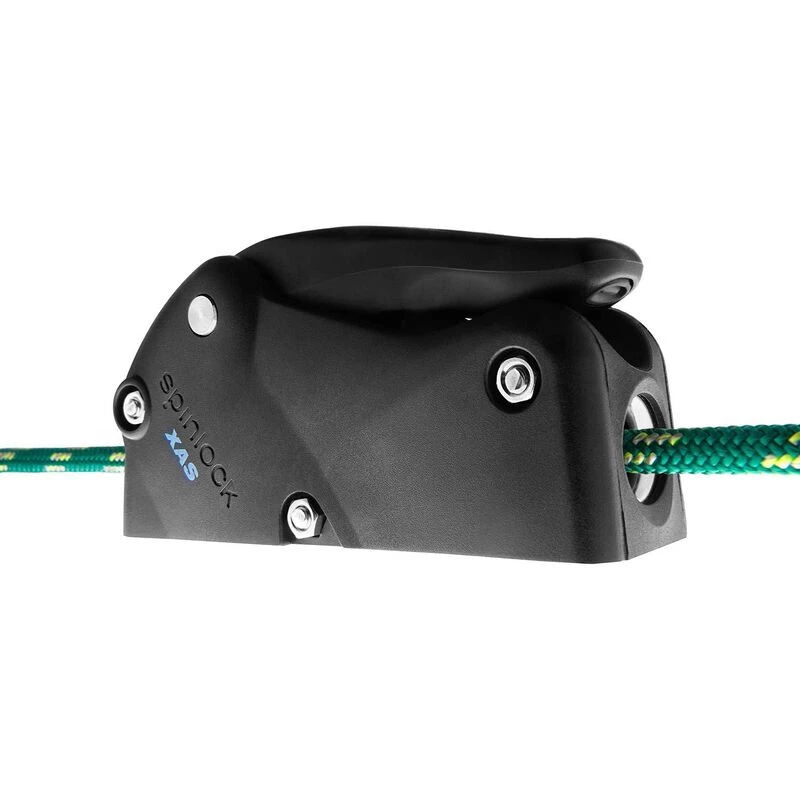

SPINLOCK Single Powerclutch, 1/4″-1/2″ Line Dia.

A reliable design for performance sailing, with a minimum of moving parts. Powerful enough to handle high loads, but gentle enough to avoid damaging your lines. Positive one-way locking clutches feature easy release and relocking. The automatic clutches can be overridden with a powerful manual lock for heavy-weather loading. The XAS series features the successful XA gripping mechanism, modified to give powerful and controlled load-holding and release. XAS Cams handle 200lb. more SWL than older XA clutches with identical footprint.The XAS series is extremely comfortable and durable, with a modern modular body and handle design.

• Application: Racers up to 27′ and cruisers up to 35′
• Height: 2 3/4″ (69mm) Length: 5 3/16″ (134mm) Width: Single: 1 1/2″ (39mm); Double: 2 9/16″ (65mm); Triple: 3 5/8″ (91mm)
• Hole Spacing: 3 1/16″ centers (79mm) Fasteners: Two 1/4″ (6mm) FHMS
• Line Diameter: XAS 0406 fits 5/32″ to 5/16″ (4-8mm) line. Safe Working Load 990lb. (450kg). XAS0612 fits 1/4″ to 1/2″ (6-12mm) line. Safe Working Load 1270lb. (575kg)
• Five year warranty
