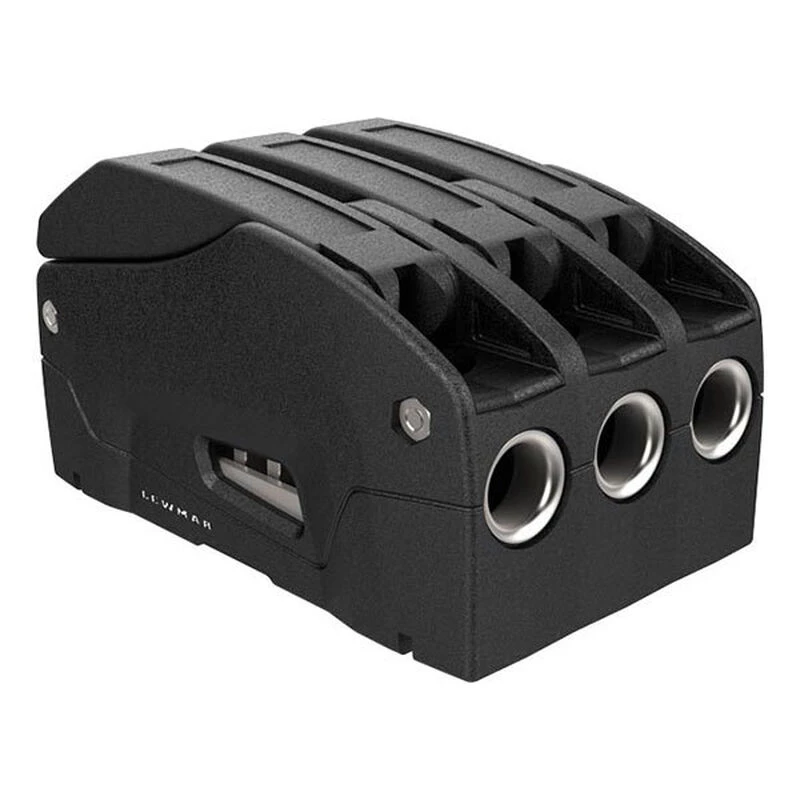

LEWMAR D2 Rope Clutch, Triple, 12-14mm

High load holding power with a controlled release.

Rope clutches are a great way to manage lines and allow a single winch to serve several halyards and control lines efficiently. They give sailors the ability to organize and secure halyards, reefing lines, furler lines, outhauls and much more. Lewmar D2 rope clutches take line control to the next level. A unique grip pattern in the domino mechanism locks line in place using a larger section of the rope. This approach not only reduces wear and tear on the line, but it gives users the ability to control the release—think of it like releasing the break of a car or truck. The comfortable variable geometry aluminum handle has a direct link to the domino mechanism to offer feedback and better control.

D2 rope clutches are best suited boats larger than 33 ft. and are sized to work with specific line diameters. Select a rope clutch for the largest size line you intend on using then select a single, double and triple clutches to manage different line configurations. Because of their higher load carrying properties, we recommend through-bolting rope clutches.

Key Features

• Provides controlled management of high load lines
• Domino cluster design secures line over a greater area to prevent fraying lines
• Comfortable aluminum handle allows controlled release of line even under full load
• Organizes halyards, reefing lines, boom vangs and more to be served by a single winch.
• Compatible with 1/2″—9/16″ line
• Dimensions: 3 3/8″H x 3 7/8″W x 6 1/8″L

Selection Guide

Clutch	Line Diameters	Min holding Load	Working Load Limit
DC2 Single 8—10 mm	5/16″—3/8″ (8—10mm)	1102 lbs.	2650 lbs.
DC2 Double 8—10 mm	5/16″—3/8″ (8—10mm)	1103 lbs.	2651 lbs.
DC2 Triple 8—10 mm	5/16″—3/8″ (8—10mm)	1104 lbs.	2652 lbs.
DC2 Single 10—12mm	3/8″—1/2″ (10—12mm)	1550 lbs.	2653 lbs.
DC2 Double 10—12mm	3/8″—1/2″ (10—12mm)	1551 lbs.	2654 lbs.
DC2 Triple 10—12mm	3/8″—1/2″ (10—12mm)	1552 lbs.	2655 lbs.
DC2 Single 12—14 mm	1/2″—9/16″ (12—14mm)	2204 lbs.	2656 lbs.
DC2 Double 12—14 mm	1/2″—9/16″ (12—14mm)	2205 lbs.	2657 lbs.
DC2 Triple 12—14 mm	1/2″—9/16″ (12—14mm)	2206 lbs.	2658 lbs.
