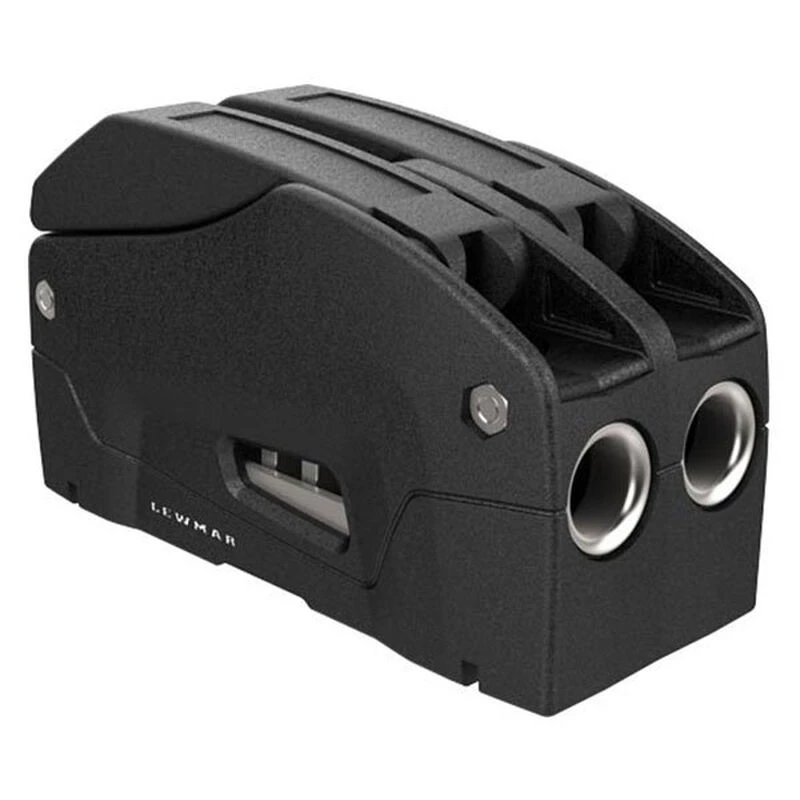

LEWMAR D1 Rope Clutch, Double, 10-12mm (3/8″-7/16″) Lines, Black

Excellent holding power with a controlled release.

Rope clutches are a great way to manage lines and allow a single winch to serve several halyards and control lines efficiently. They give sailors the ability to organize and secure halyards, reefing lines, furler lines, outhauls and much more. Lewmar D1 rope clutches take line control to the next level. A unique grip pattern in the domino mechanism locks line in place using a larger section of the rope. This approach not only reduces wear and tear on the line, but it gives users the ability to control the release—think of it like releasing the break of a car or truck. The comfortable variable geometry aluminum handle has a direct link to the domino mechanism to offer feedback and better control.

D1 rope clutches are best suited boats smaller than 33 ft. and are sized to work with specific line diameters up to 7/16″. Select a rope clutch for the largest size line you intend on using then select a single, double and triple clutches to manage different line configurations. Because of their higher load carrying properties, we recommend through-bolting rope clutches.

Key Features

• Provides controlled management of high load lines
• Domino cluster design secures line over a greater area to prevent fraying lines
• Comfortable aluminum handle allows controlled release of line even under full load
• Organizes halyards, reefing lines, boom vangs and more to be served by a single winch.
• Compatible with 3/8″—7/16″ line
• Dimensions: 2 13/16″H x 2 15/16″W x 5″L

Lewmar Rope Clutch Selection Guide

D1 Clutch Selection Guide

Clutch	Line Diameters	Min holding Load	Working Load Limit
DC1 Single 6—8 mm	5/16″—3/8″ (8—10mm)	661 lbs.	1100 lbs.
DC1 Double 6—8 mm	5/16″—3/8″ (8—10mm)	661 lbs.	1100 lbs.
DC1 Triple 6—8 mm	5/16″—3/8″ (8—10mm)	661 lbs.	1100 lbs.
DC1 Single 8—10mm	5/16″—3/8″ (8—10mm)	880 lbs.	1100 lbs.
DC1 Double 8—10mm	5/16″—3/8″ (8—10mm)	880 lbs.	1100 lbs.
DC1 Triple 8—10mm	5/16″—3/8″ (8—10mm)	880 lbs..	1100 lbs.
DC1 Single 10—12mm	3/8″—7/16″ (10—12mm)	1100 lbs.	1100 lbs.
DC1 Double 10—12mm	3/8″—7/16″ (10—12mm)	1100 lbs.	1100 lbs.
DC1 Triple 10—12mm	3/8″—7/16″ (10—12mm)	1100 lbs.	1100 lbs.
